5W RTP 4" - 23.6" 5 Wire Resistive Touch Panel With USB Cable And
Controller
5W resistive overview
5-Wire Resistive touch screen, features unrivaled accuracy,
reliability, superior light transmission, highest touch point
density, sensitive and drift-free. Imperious to environmental
conditions such as liquid splashes and washdown, these screens are
the most contamination-resistant available. It can be touched by
finger, gloved finger, leather or stylus pen. The life time is up
to 35 million finger touches, much better than 4 wire resistive
touch screen, delivering fantastic performance in retail, industry,
transportation, financial, hospital, Kiosk or telecom field.
Benefits
■ Long lifetime (almost ten times of 5 Wire Resistive Touch Screen)
■ Finger, gloved hand and stylus activation
■ Contaminant proof and liquid resistance
■ High accuracy and durability
■ High resolution and sensitivity
Application
■ Point-of-Sale uses: convenience store, movie theater, lottery
terminal, fast food, etc
■ Industrial uses: Automated testing, automation equipment,
man-machine interface, etc
■ Medical uses: medical instrument, research equipment and patient
monitoring system
■ Transportation uses: Inner vehicle control panel
№ | Item | Specification |
1 | Item model | DPT-5W-*** |
2 | Detection method | Resistive |
3 | Size | 3"~22" |
4 | Aspect ratio | 16:10 |
5 | Input method | Finger or touch pen |
6 | Touch action force | 20~80g |
7 | Position accuracy | 4.5~5mm |
8 | Operating Voltage | DC≤10V |
9 | Operating current | 5~25mA |
10 | Operating temperature | -10°C~60°C |
11 | Storage temperature | -20°C~70°C |
12 | Humidity | 10%~90%RH at 60°C, non-condensing |
13 | Relative humidity | 10%~90%RH at 40°C, non-condensing |
14 | Response time | <10ms |
15 | Transparency | ≥78% |
16 | Surface hardness | 3H |
17 | Material | Glass + Film |
18 | Thickness | ITO Glass:1.1~1.8mm |
ITO Film:0.188mm |
19 | Light transmission | 92%~100% |
20 | Durability | Scratch-free; More than 50,000,000 touches in one location without
failure |
21 | Drivers available | Windows 2000,Windows XP,Windows NT,Linux,Mac |
22 | Surface Disposal | Glare hard coating;Anti-Newton ring |
23 | Certificates | CE, FCC, RoHS |
24 | Working environment | Under sunlight,indoor and outdoor |
25 | Pen hitting life | ≥10,000,000/point |
26 | Pen sliding Durability | ≥500,000 times |
27 | Finger Touch life | ≥35,000,000 times |
28 | Surface resistance | 30Ω~350Ω |
29 | Isolation resistance | ≥20MΩ @ DC 25V |
30 | Linearity | ≤7% |
31 | X.Y resistance | 30Ω~350Ω according to the size |
32 | Warranty | 1 year |
No. | Size | Item NO. | OD(mm) | VA(mm) | AA(mm) |
1 | 4”-22” | 5W Customized size |
|
|
|
2 | 10.4” | TP104W5BZ | 234.00*178.00 | 216.00*163.40 | 212.00*159.40 |
3 | 12.1” | TP121W5BZ | 266.00*203.20 | 253.50*191.50 | 248.00*186.00 |
4 | TP121W5H1 | 263.00*200.00 | 250.30*191.00 | 245.30*186.00 |
5 | TP121W5K | 275.80*178.00 | 264.10*166.20 | 261.10*163.20 |
6 | TP121W5N1 | 279.00*215.60 | 253.80*192.10 | 245.80*184.10 |
7 | TP121W5N2 | 271.00*206.00 | 252.00*190.00 | 248.00*186.00 |
8 | 14” | TP14W5K | 319.40*198.60 | 306.80*186.80 | 305.80*185.80 |
9 | 14.1” | TP141W5BZ | 304.00*231.00 | 289.00*218.00 | 285.00*214.00 |
10 | 15” | TP15W5BD | 322.00*247.00 | 310.50*236.00 | 302.00*226.00 |
11 | TP15W5BZ | 322.00*247.00 | 310.50*236.00 | 304.00*228.00 |
12 | TP15W5H1 | 321.20*246.00 | 306.96*232.16 | 304.04*228.09 |
13 | TP15W5K | 346.20*217.00 | 331.20*217.00 | 327.20*203.00 |
14 | TP15W5N1 | 317.00*241.00 | 305.00*229.40 | 304.00*228.00 |
15 | TP15W5N2 | 325.00*252.50 | 311.70*235.70 | 304.00*228.00 |
16 | TP15W5N3 | 328.00*255.00 | 310.50*236.00 | 302.00*226.00 |
17 | 15.4” | TP154W5K | 346.90*223.00 | 335.00*210.70 | 331.20*207.00 |
18 | 15.6” | TP156W5K | 359.00*212.00 | 347.30*196.60 | 344.30*193.60 |
19 | TP156W5N1 | 359.00*209.00 | 345.00*195.00 | 342.00*192.00 |
20 | TP156W5N2 | 359.00*209.20 | 344.00*194.00 | 341.00*191.00 |
21 | 15.7” | TP157W5K | 364.00*215.00 | 351.00*200.00 | 348.00*197.00 |
22 | 17” | TP17W5BZ | 355.00*288.00 | 341.50*275.00 | 337.00*269.00 |
23 | TP17W5K | 382.20239.50 | 367.20*229.50 | 363.20*225.50 |
24 | TP17W5N2 | 357.00*295.00 | 341.60*274.00 | 337.76*270.17 |
25 | TP17W5N5 | 354.00*290.00 | 341.00*275.00 | 337.00*269.00 |
26 | 17.3” | TP173W5K | 397.70*232.40 | 384.98*217.76 | 380.00*213.00 |
27 | TP173W5N1 | 401.00*234.00 | 386.00*219.00 | 383.00*216.00 |
28 | 18.5" | 5W-1850K | 424.00*243.00 | 410.00*231.00 | 406.00*227.00 |
29 | 18.5" | 5W-1850N | 429.37*253.60 | 412.97*234.00 | 409.37*230.40 |
30 | 19” | TP19W5BZ | 396.00*323.00 | 377.00*304.00 | 375.00*300.00 |
31 | TP19W5K | 426.00*276.00 | 414.00*260.00 | 410.00*256.00 |
32 | TP19W5N1 | 394.00*324.00 | 377.00*304.00 | 375.00*300.00 |
33 | TP19W5N2 | 395.00*324.00 | 380.32*306.06 | 376.32*301.06 |
34 | TP19W5N3 | 395.00*322.00 | 380.20*305.00 | 378.20*303.00 |
35 | 20” | TP20W5BZ | 430.00*322.00 | 413.00*311.00 | 407.80*305.85 |
36 | 21.5” | TP215W5K | 500.00*289.60 | 480.00*270.40 | 476.40*266.00 |
37 | 22” | TP22W5 | 488.00*310.00 | 475.00*298.00 | 471.00*294.00 |
38 | TP22W5N2 | 493.00*320.00 | 480.20*304.50 | 473.76*296.10 |

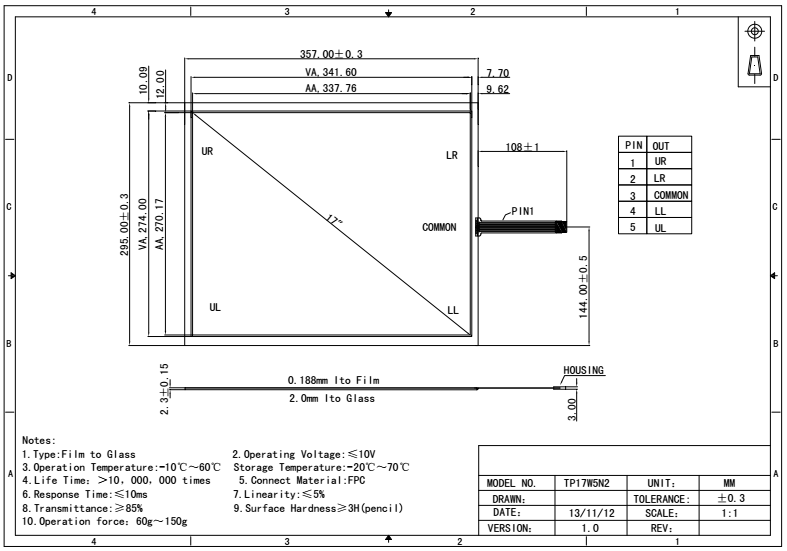

Example of engineering drawings
Please email us and we will send you its engineering drawing
