Customized/standard 7-350 Inch Multitouch Infrared Touch Panel With USB Cable and Controller,

Ask Lasest Price
Model Number :	DPT-IR-xx
Brand Name :	Dopo touch
Certification :	CE,FCC,ROHS
Delivery Time :	7-15 working days
Payment Terms :	T/T,westen union
Supply Ability :	20Kpcs/month

Add to Cart

Product Details
Company Profile

Customized/standard 7-350 Inch Multitouch Infrared Touch Panel With USB Cable and Controller,

Customied and standard infrared touch panel(IR-TP) With USB Cable and Controller, 7"-350 Inch Infrared Touch Panel

More than 32" are 10-point touch panels

Driver free for Win / Linux / Mac

Size	Item NO.	Outline Dimension (mm) OD	Viewing Area(mm) VA	Action Area(mm) AA
7”	DPT-IR-GL070050	189.30*128.30	156.60*95.40	155.30*94.30
8.4”	DPT-IR-GL084050	208.00*165.00	175.00*132.00	174.00*131.00
10.4”	DPT-IR-GL104050	247.00*194.00	214.00*161.00	213.00*160.00
12.1”	DPT-IR-GL121050	281.50*220.00	249.00*187.00	247.50*186.00
15”	DPT-IR-MT150010	376.20*284.20	307.00*231.00	305.20*229.00
17”	DPT-IR-AT170020	383.60*315.60	351.80*283.80	340.00*272.00
19”	DPT-IR-AT190020	418.00*343.00	380.00*305.00	378.00*303.00
19”	DPT-IR-AT190022	450.24*297.15	419.04*265.05	410.24*257.15
22”	DPT-IR-AT220020	517.00*339.00	477.00*299.00	474.00*296.00
32”	DPT-IR-AT320030	741.00*436.00	700.68*400.87	697.68*397.87
37”	DPT-IR-AT370020	888.40*532.50	829.60*473.70	826.60*470.70
37”	DPT-IR-AT370030	863.00*504.00	822.60*463.80	819.60*460.80
40”	DPT-IR-AT400020	953.50*566.00	894.70*507.20	891.70*504.20
42”	DPT-IR-AT420020	1000.00*593.00	941.20*534.20	938.20*531.20
42”	DPT-IR-AT420030	974.00*567.00	933.23*526.25	930.23*523.25
46”	DPT-IR-AT460020	1088.80*642.80	1030.00*584.00	1027.00*581.00
47”	DPT-IR-AT470020	1107.00*652.00	1048.20*593.20	1045.20*590.20
47”	DPT-IR-AT470030	1111.00*655.00	1052.00*596.00	1049.00*593.00
50”	DPT-IR-AT500020	1171.80*687.80	1113.00*629.00	1110.00*626.00
52”	DPT-IR-AT520020	1228.00*724.00	1169.20*665.20	1166.20*662.20
52”	DPT-IR-AT520030	1226.00*722.00	1168.00*664.00	1164.00*660.00
55”	DPT-IR-AT550020	1279.00*750.00	1221.20*692.20	1217.20*688.20
55”	DPT-IR-AT550030	1280.00*750.00	1222.00*692.00	1218.00*688.00
57”	DPT-IR-AT570020	1322.00*773.00	1264.00*715.20	1260.00*711.20
60”	DPT-IR-AT600020	1391.80*806.80	1333.00*748.00	1330.00*745.00
60”	DPT-IR-AT600030	1400.00*818.00	1342.00*760.00	1338.00*756.00
63”	DPT-IR-AT630020	1480.00*873.00	1422.00*815.00	1418.20*811.20
65”	DPT-IR-AT650020	1501.80*875.80	1444.00*818.00	1440.00*814.00
65”	DPT-IR-AT650030	1502.00*876.00	1444.00*818.00	1440.00*814.00
70”-200”	OEM items, Customizated size from 70” to 200”.

New item 10-point infrared touch panels

No.	Size	Item NO.	Outline Dimension (mm) OD	Viewing Area(mm) VA	Action Area(mm) AA
1	10”-350”	Customized size
2	17”	IR-170001S	380.00*312.00	342.00*274.00	340.00*272.00
3	18.5”	IR-185003S	451.40*272.00	413.40*234.00	411.40*232.00
4	19”	IR-190001S	418.00*343.00	380.00*315.00	378.00*313.00
5	19”Wide	IR-190002S	450.20*297.00	412.00*259.00	410.20*257.00
6	20”	IR-200001S	484.80*291.10	446.80*253.10	444.80*251.10
7	21.5”	IR-215001S	518.60*310.10	480.60*272.10	478.60*270.10
8	22”	IR-220001S	518.00*340.50	482.00*304.50	478.00*300.50
9	23.6”	IR-236001S	563.30*335.20	527.30*299.20	523.30*295.20
10	24”	IR-240001S	562.50*368.00	526.50*332.00	522.50*328.00
11	26”	IR-260001S	592.00*386.00	556.00*350.00	552.00*346.00
		IR-Txx= ten-point touch	Customized size for 24”-350” ten-point touch

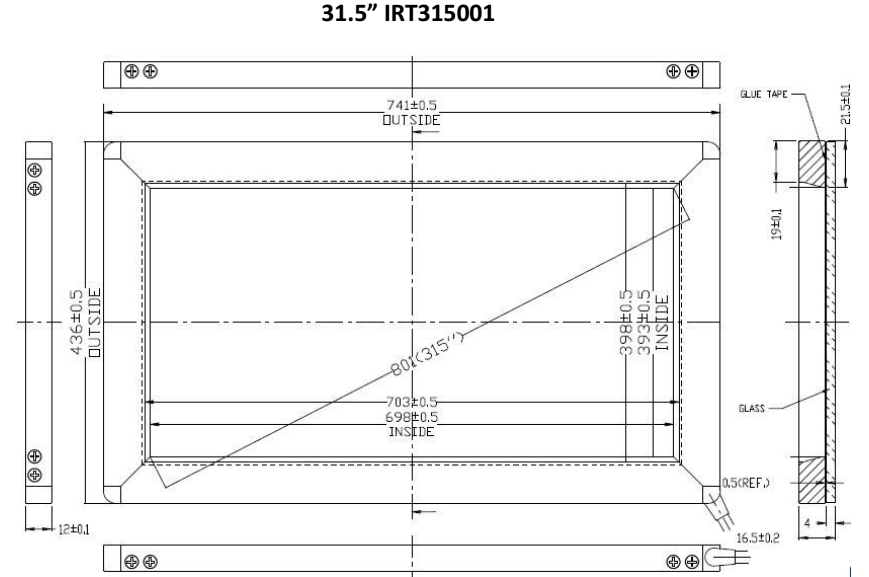

12	31.5”	IR-T315001	741.00*436.00	703.00*398.00	698.00*393.00
13	42”	IR-T420001	974.00*567.00	936.00*529.00	931.00*524.00

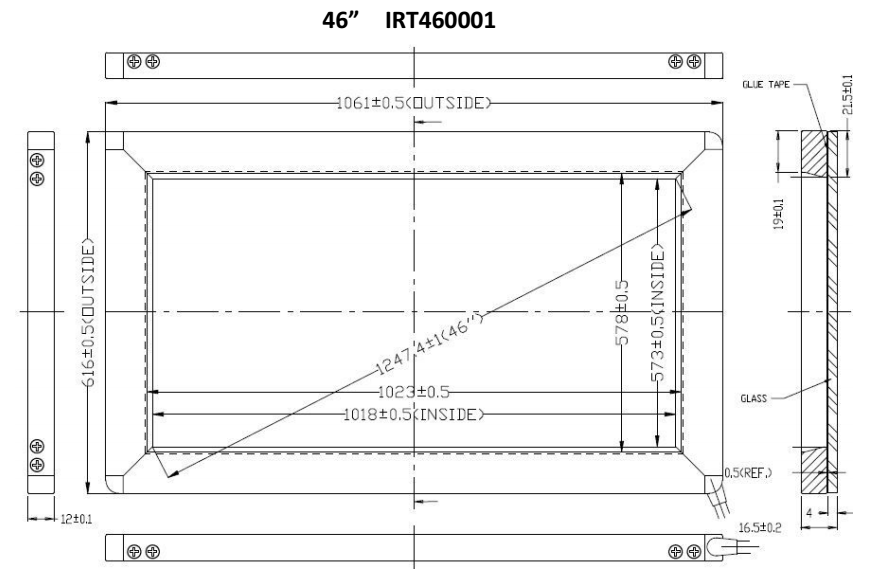

14	46”	IR-T460001	1061.00*616.00	1023.00*578.00	1018.00*573.00
15	55”	IR-T550001	1148.00*665.00	1110.00*627.00	1105.00*622.00
16	55”	IR-T550002	1253.00*724.00	1215.00*686.00	1210.00*681.00
17	60”	IR-T600001	1372.00*791.00	1334.00*753.00	1329.00*748.00
18	65”	IR-T650001	1472.00*847.00	1434.00*809.00	1429.00*804.00
19	70”	IR-T700001	1592.50*914.50	1554.50*876.50	1549.50*871.50
