Item

Specification

1

Item NO.

DPT-4W-xxxxxx

2

Detection method

Four wire Resistive

3

Size

See engineering drawing

4

Aspect ratio

4:3

5

Input method

Finger or touch pen

6

Touch action force

20~80g

7

Position accuracy

4.5mm

8

Operating Voltage

DC≤10V

9

Operating current

5~25mA

10

Operating temperature

-10°C~60°C

11

Storage temperature

-20°C~70°C

12

Humidity

10%~90% RH at 60°C, non-condensing

13

Relative humidity

10%~90% RH at 40°C, non-condensing

14

Response time

<10ms

15

Transparency

≥80%

16

Surface hardness

3H

17

Material

Glass + film

18

Thickness

ITO Glass:1.8mm

ITO Film:0.188mm

19

Light transmission

92%~100%

20

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

21

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

22

Surface Disposal

Glare hard coating; Anti-Newton ring

23

Certificates

CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Pen hitting life

≥10,000,000/point

26

Pen sliding Durability

≥500,000 times

27

Finger Touch life

≥35,000,000 times

28

Surface resistance

200Ω~900Ω

29

Isolation resistance

≥20MΩ @ DC 25V

30

Linearity

≤1.5%

31

X.Y resistance

X:180Ω~480Ω Y:500Ω~1080Ω

32

Warranty

1 year

No.

Size

Item NO.

Outline Dimension

(mm) OD

Viewing Area(mm)

VA

Action Area(mm)

AA

1

Customized size 2”-10.1” with small pin and no controller

2

2.0”

DPT-4W-0200135

50.50*38.00

40.60*33.80

39.60*32.68

3

2.5”

DPT-4W-0250106

63.00*29.00

59.80*23.80

25.00*22.30

4

2.8”

DPT-4W-0280131

68.80*48.80

59.00*44.80

58.00*43.80

5

DPT-4W-0280194

66.72*45.00

60.00*35.48

57.00*33.48

6

3.0”

DPT-4W-0300115

72.00*39.00

67.30*34.00

62.30*31.80

7

DPT-4W-0300130

66.00*64.00

53.90*58.50

52.90*50.50

8

DPT-4W-0300199A

76.69*55.00

67.79*51.60

66.79*50.60

9

DPT-4W-0300199B

76.69*55.00

67.79*51.60

66.79*50.60

10

3.2”

DPT-4W-0320128

77.50*49.80

71.90*40.10

71.50*39.70

11

DPT-4W-0320174

72.00*50.00

67.30*44.00

62.30*41.80

12

3.3”

DPT-4W-0330038

82.00*24.00

78.00*18.50

/

13

DPT-4W-0330061

75.60*59.50

68.60*52.50

/

14

3.5”

DPT-4W-0350018

76.00*68.60

64.00*61.60

/

15

DPT-4W-0350122

85.00*64.00

76.2*58.40

75.80*58.00

16

DPT-4W-0350129

77.20*55.10

71.00*50.70

69.00*49.20

17

3.6”

DPT-4W-0360200A

80.00*65.00

77.00*55.90

76.00*54.90

18

DPT-4W-0360200B

80.00*65.00

77.00*55.90

76.00*54.90

19

4.2”

DPT-4W-0420035

101.00*61.00

94.00*52.00

/

20

4.3”

DPT-4W-0430008

104.70*64.90

99.00*57.60

96.40*55.00

21

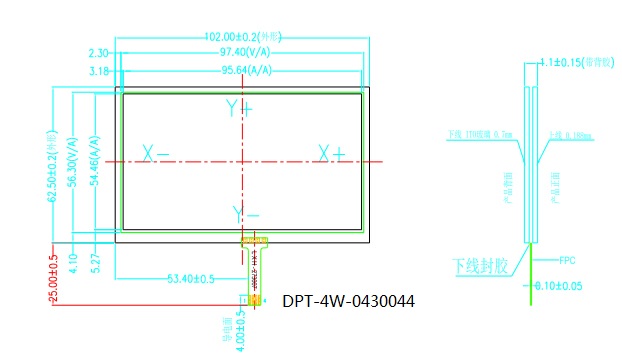

DPT-4W-0430044

102.00*62.50

97.40*56.30

95.64*54.46

22

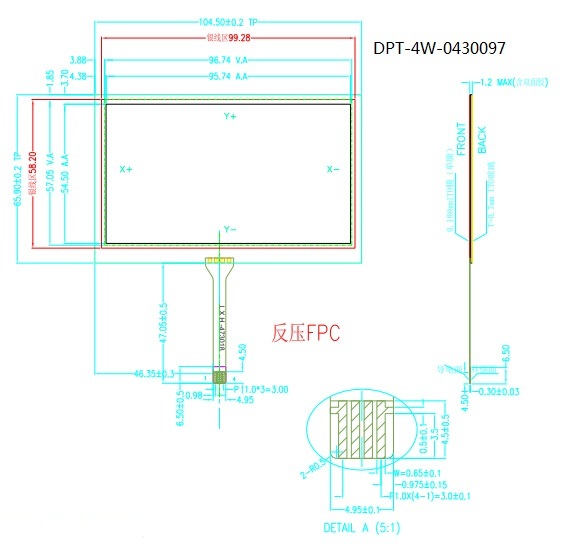

DPT-4W-0430097

104.50*65.90

96.74*57.05

95.74*54.50

23

5.0”

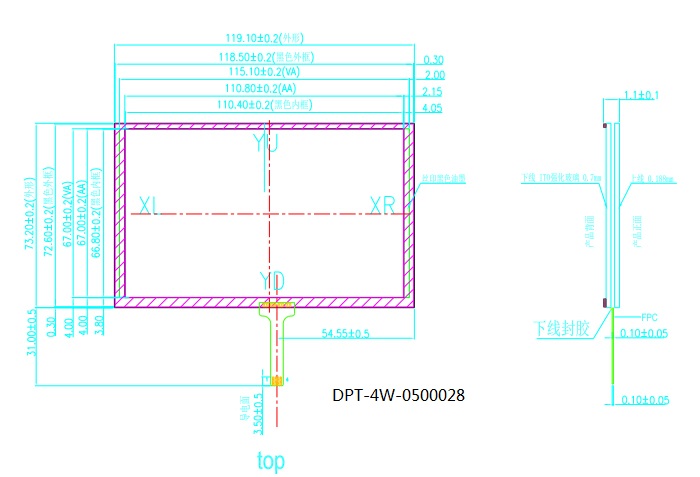

DPT-4W-0500028

119.10*73.20

115.10*67.00

110.80*67.00

24

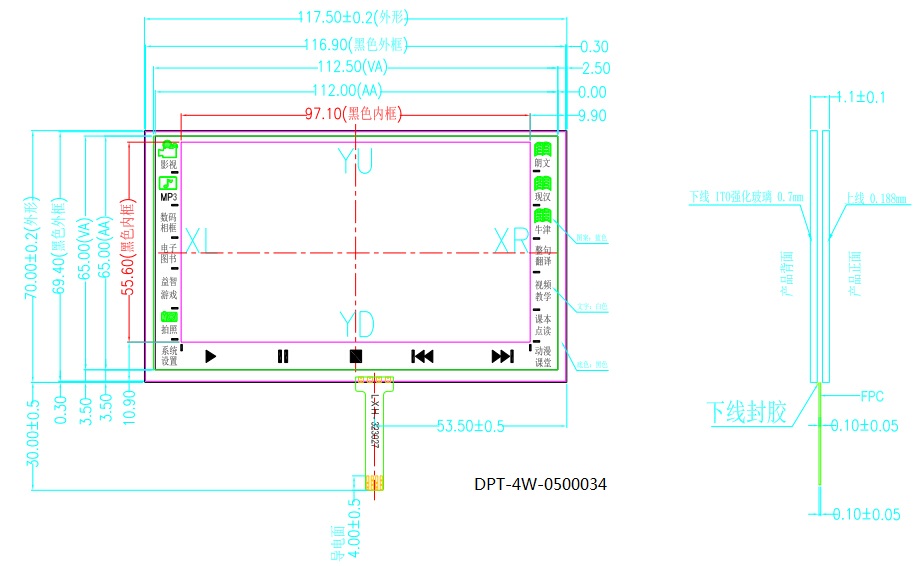

DPT-4W-0500034

117.50*70.00

112.50*65.00

112.00*65.00

25

DPT-4W-0500122

120.00*73.50

115.10*67.50

110.80*66.22

26

DPT-4W-0500192

120.70*76.30

111.20*68.20

108.30*65.10

27

5.2”

DPT-4W-0520011

131.00*78.00

114.00*64.00

108.00*58.00

28

5.6”

DPT-4W-0560041

126.50*100.00

113.80*85.90

112.80*84.90

29

5.7”

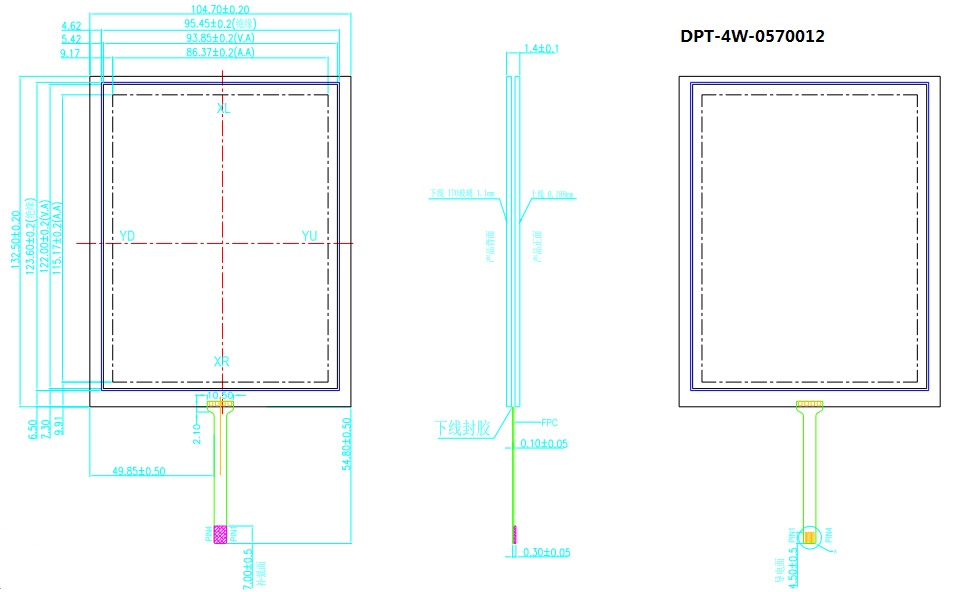

DPT-4W-0570012

132.50*104.70

122.00*93.85

115.17*86.37

30

DPT-4W-0570055

133.00*103.00

123.00*93.00

115.17*86.36

31

DPT-4W-0570081

130.00*97.00

120.00*91.00

116.04*87.00

32

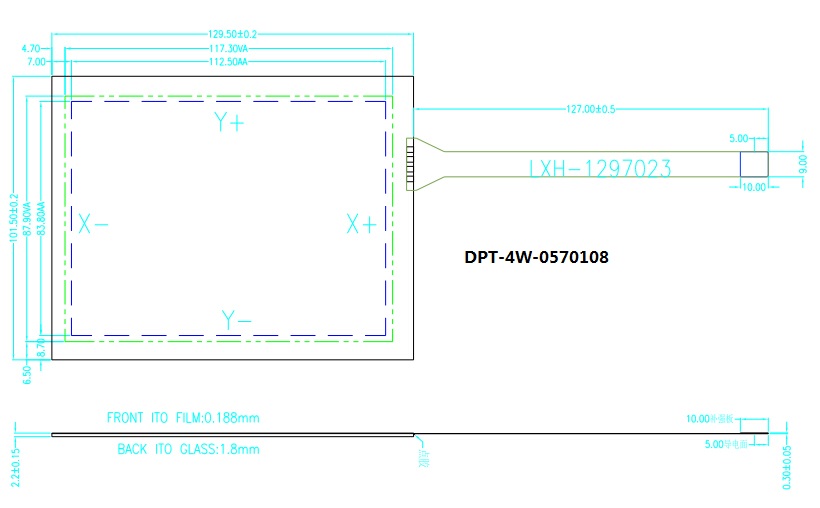

DPT-4W-0570108

129.50*101.50

117.30*87.90

112.50*83.80

33

6.1”

DPT-4W-0610147

149.00*82.90

138.20*74.00

135.00*70.80

34

6.2”

DPT-4W-0620002

154.80*87.80

140.70*80.00

137.52*77.22

35

DPT-4W-0620002B

155.20*88.20

140.70*80.00

135.05*75.40

36

DPT-4W-0620045

155.20*88.20

138.82*78.53

135.82*75.53

37

DPT-4W-0620064

154.80*87.80

143.50*80.62

135.80*75.50

38

DPT-4W-0620074

154.30*87.20

140.80*80.00

135.80*75.00

39

DPT-4W-0620104

155.00*88.00

142.40*80.43

135.40*75.30

40

DPT-4W-0620120

152.75*87.55

142.35*79.95

134.65*72.40

41

6.5”

DPT-4W-0650001

155.00*88.00

139.70*78.80

136.40*75.60

42

DPT-4W-0650168

154.80*89.10

146.40*80.55

142.38*76.30

43

6.7”

DPT-4W-0670123

154.00*105.00

144.20*92.00

142.20*90.00

44

6.95”

DPT-4W-0695140

166.50*92.50

159.24*84.87

154.40*80.56

45

DPT-4W-0695142

166.95*92.90

159.35*84.80

157.15*79.70

46

DPT-4W-0695148

166.70*92.50

158.60*84.25

154.50*80.50

47

7.0”

DPT-4W-0700007

165.00*100.00

157.00*90.00

152.00*85.00

48

DPT-4W-0700021

164.60*103.60

155.70*94.70

152.40*91.44

49

DPT-4W-0700026

166.77*92.50

158.60*84.25

154.50*80.50

50

DPT-4W-0700030

164.50*99.50

155.30*87.22

150.40*83.50

51

DPT-4W-0700046

164.90*99.90

157.00*87.90

152.60*83.53

52

DPT-4W-0700047

164.80*99.80

156.30*89.30

154.30*86.80

53

DPT-4W-0700056

164.90*100.00

155.50*88.50

153.50*86.00

54

DPT-4W-0700060

164.90*100.00

155.60*88.64

152.60*83.94

55

DPT-4W-0700065B

164.80*100.00

155.60*88.64

152.60*85.64

56

DPT-4W-0700069

161.20*97.00

156.20*88.80

155.60*88.20

57

DPT-4W-0700072

164.50*99.70

157.30*89.70

153.08*83.92

58

DPT-4W-0700073

164.90*99.90

157.50*89.90

149.60*83.49

59

DPT-4W-0700076

164.50*99.60

155.50*88.50

153.50*86.00

60

DPT-4W-0700079

164.80*99.90

155.90*90.40

152.70*85.70

61

DPT-4W-0700087

164.80*100.00

156.80*91.30

149.74*82.30

62

DPT-4W-0700092

164.70*99.80

154.60*87.64

151.60*84.64

63

DPT-4W-0700110

162.60*97.60

156.00*89.52

152.50*84.85

64

DPT-4W-0700117

164.40*99.90

154.20*91.25

151.94*84.70

65

DPT-4W-0700119

164.30*98.70

156.68*88.52

155.68*87.52

66

DPT-4W-0700126

163.60*98.90

156.40*89.30

151.35*84.20

67

DPT-4W-0700153

163.65*100.46

156.60*93.00

154.60*91.00

68

DPT-4W-0700157

164.90*99.00

157.25*90.10

155.25*88.10

69

DPT-4W-0700162

165.30*93.00

149.10*76.80

145.10*72.80

70

DPT-4W-0700169

164.90*100.00

156.70*89.10

152.38*84.70

71

7.1”

DPT-4W-0710116

167.39*104.10

157.20*94.80

155.00*92.00

72

8.0”

DPT-4W-0800004

192.20*116.00

183.00*105.70

175.80*99.30

73

DPT-4W-0800071

192.30*116.40

180.10*103.40

174.00*96.50

74

DPT-4W-0800082

192.56*116.80

182.60*106.00

173.60*96.50

75

DPT-4W-0800109

182.70*140.50

160.40*125.40

161.88*121.80

76

8.1”

DPT-4W-0810005

192.40*115.86

180.10*103.78

175.64*98.36

77

8.4”

DPT-4W-0810138

191.17*141.50

171.40*131.80

172.40*129.80

78

9.0”

DPT-4W-0900075

210.70*126.10

201.00*114.70

197.00*110.70

79

DPT-4W-0900185

210.50*124.30

200.40*114.48

198.60*112.68

80

10.1”

DPT-4W-1010086

235.00*143.00

225.50*128.00

221.50*124.00

81

10.4”

DPT-4W-1040042

228.60*175.30

211.008157.50

208.80*155.30
