Industrial 10.4 To 65 Inch Projective Capacitive Touch Screen Panel
For Touch PC
Interface: I2C/USB
DOPO
catalogue V2019.pdf
1) P+G=PET+GLASS(the cover lens is PET and the touch sensor is glass)
2) G+G=GLASS+GLASS (the cover lens is glass and the touch sensor is
glass)
3) G+F/F=Glass+FILM+FILM(the cover lens is glass and the touch
sensor is film+film)
Quick Detail:
1. Size: 10.4"-65 inch
2. Resolution: 1024*1024
3. Input method: Finger
4. Material: P+G,G+G,G+F/F
5. Touch action force: 30~60g
6. Operating Voltage: 3.3V
Advantage
■ Multi-points touching
■ Superior image clarity with high light transmission
■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ Highest resolution
■ More application in electronic fields
Projected Capacitive TouchScreen Technology
Projected Capacitive Technology permits more accurate and flexible
operation by etching the conductive layer on the touch screen.
Projected Capacitive Technology (PCT) is a more robust solution
versus resistive touch technology since PCT's top layer is made of
glass. DOPO's Projected Capacitive Touchscreens can support
resolutions up to 1024 x 1024 with a sampling rate of 50 times per
second. Our Projected Capacitive Touch Screens uses multiple layers
of glass wih optical lamination in assembly process. This makes the
PCT touch screen the same touchness as tempered glass which could
stand against shock and impact.
Projected Capacitive touch panels are embedded with high
performance IC and users can enlarge, shrink, rotate, flip and drag
pages easily due to the multi-touch gesture support (multi touch
touch screen).
Specification
№ | Item | Specification |
1 | Item model | DPT-CP-*** |
2 | Detection method | Projected Capacitive |
3 | Size | 10.4"-65" |
4 | Aspect ratio | 4:3/16:9 |
5 | Resolution | According to the size |
6 | Input method | Finger |
7 | Touch action force | 30~60g |
8 | Operating Voltage | 3.3V adjustable |
9 | Operating current | 2.5~10mA Depends on IC |
10 | Operating temperature | -10°C~60°C |
11 | Storage temperature | -15°C~40°C ,＜90%RH；40°C~70°C,＜60%RH |
12 | Humidity | 10%~90%RH at 40°C, non-condensing |
13 | Relative humidity | 10%~90%RH at 40°C, non-condensing |
14 | Response time | <10ms |
15 | Transparency | ≥82% depends on the quantity of layers |
16 | Surface hardness | ≥5H |
17 | Material | P+G,G+G,G+F/F |
18 | Thickness | 0.5-2.0mm adjustable
|
19 | Light transmission | 92%~100% |
20 | Durability | Scratch-free; More than 50,000,000 touches in one location without
failure |
21 | Drivers available | Windows 2000,Windows XP,Windows NT,Linux,Mac |
22 | Certificates | CE, FCC, RoHS |
23 | Working environment | Under sunlight,indoor and outdoor |
24 | Finger Touch life | ≥35,000,000 times |
25 | Warranty | 1 year |
Custom Projected Capacitive Touch Screens
Our capacitive touch panel design can be paired with housing design
from the customers to cover their lens or replace the physical
buttons on its original module. DOPO is also capable of doing the
customized shape needed to pair with customer's mechanical design.
With the assistance of the simulation software, equiment with high
accuracy and simplifying assembly process, DOPO is capable of
making the sample in shorter period and with lower development
charge.
Projected Capacitive Touch Panel Applications
Since Projected capacitive touch panels can sense gloved hand
gestures, it is a popular and logical choice for the medical and
industrial industries. Its robust design also makes it a
hard-wearing logical choice for point of sales and consumer
products.
Application
■ kiosk
■ Car navigation (GPS)
■ E-book
■ game machine
■ information station
■ touch PC
■ Electronic photo frame
Comparison between Capacitive Touch Panel and Resistive Touch Panel |
Capacitive Touch Panel | Resistive Touch Panel |
Touch (no pressure needed) | Press (pressure activated) |
No calibration required | Calibration required (resistance drift on film) |
Better Durability, No significant aging | Display turns white when aging |
Handles high temperature | Film breaks down at high temperature |
Better Transparency, less optical power needed | Low transmission |
Can be vandal-proof (thick glass/plastic) | Easily damaged (thin top layer) |
Scratch Resistant (with glass) | Prone to scratch without hardcoat |
Stylus not a must | Need stylus, easy to lose |
No. | Size | Item NO. | CG OD (mm) | CG VA (mm) | Sensor AA mm | Sensor/CG Thick mm | Total thick |
1 | 1”-10.1” I2C | P+G | Customized product TP <10.1” are 5-point touch and TP>10.1” are 10-point touch I2C(COF)And special USB(COF) product |
G+G |
G+F/F |
10.4”-17” I2C USB | P+G | Customized product 10-point touch I2C(COF)And USB(COF),USB(COB) product |
G+G |
G+F/F |
2 | 17”- 65” USB
| P+G | 'Customized product 10-point touch USB(COB) product |
G+G |
G+F/F |
3 | 2”-32” | OGS | One glass screen Customized product |
|
| All of the below items are USB interface |
4 | 7”USB | GG-070020 | 182.30*122.00 | 155.80*87.50 | 155.20*87.10 | 0.7/0.55 | 1.4 |
5 | 8”USB | GG-080020 | 191.90*150.00 | 164.00*123.50 | 163.20*122.90 | 0.7/0.55 | 1.4 |
6 | 10.1” | GG-101020 | 255.00*169.00 | 216.00*136.00 | 215.00*135.00 | 0.7/0.55 | 1.4 |
7 | 10.2” | GG-102020 | 247.20*194.00 | 212.20*159.40 | 211.20*158.40 | 0.7/1.1 | 2 |
8 | 10.4” | GG-104010 | 247.20*189.40 | 213.20*160.40 | 215.20*162.40 | 1.1/2 | 3.3 |
9 | 12.1” | GG-121010 | 290.00*220.50 | 246.00*184.50 | 248.00*186.50 | 0.7/1.1 | 2 |
10 | GG-121020 | 290.00*220.50 | 246.00*184.50 | 246.00*184.50 | 0.7/1.1 | 2 |
11 | 13.3” | GG-133010 | 333.40*196.00 | 293.4.00*165.00 | 295.00*166.60 | 0.55/1.1 | 1.85 |
12 | GG-133020 | 329.70*210.00 | 296.47*168.00 | 295.47*167.00 | 0.7/1.1 | 2 |
13 | 14” | GG-140010 | 335.00*200.00 | 305.00*176.00 | 307.00*178.00 | 1.1/2 | 3.3 |
14 | 15” | GG-150010 | 339.90*263.90 | 304.00*228.00 | 306.00*230.00 | 1.1/3 | 4.3 |
15 | GG-150020 | 331.60*254.80 | 307.00*232.10 | 306.00*231.10 | 0.7/1.1 | 2 |
16 | GG-150021 | 326.00*253.40 | 306.00*230.00 | 305.00*229.00 | 0.7/2 | 2.9 |
17 | 15.6” | GG-156010 | 387.00*231.00 | 344.00*194.00 | 346.00*196.00 | 1.1/3 | 4.3 |
18 | GG-156020 | 373.63*233.34 | 344.23*193.54 | 342.23*191.54 | 0.7/1.1 | 2 |
19 | 17” | GG-170010 | 377.00*309.00 | 339.00*271.30 | 340.90*273.30 | 1.1/3 | 4.3 |
20 | GG-170020 | 377.00*298.00 | 340.92*273.34 | 338.92*271.34 | 0.7/2 | 3 |
21 | 17.3” | GG-173010 | 550.00*278.00 | 375.90*208.80 | 377.90*210.80 | 1.1/3 | 4.3 |
22 | 18.5” | GG-185010 | 458.00*283.00 | 410.80*231.40 | 412.80*233.40 | 1.1/3 | 4.3 |
23 | GG-185020 | 443.90*273.55 | 412.80*233.40 | 410.80*231.40 | 0.7/1.1 | 2 |
24 | 18.95” | GG-189510 | 450.80*301.00 | 409.80*259.00 | 410.80*260.0 | 1.1/3 | 4.3 |
25 | 19” | GG-190010 | 421.00*346.00 | 377.30*302.10 | 379.30*304.10 | 1.1/3 | 4.3 |
26 | GG-190020 | 421.00*346.00 | 379.32*304.96 | 377.32*302.96 | 0.7/2 | 2.9 |
27 | 21” | GG-210020 | 525.00*312.00 | 480.20*271.80 | 478.20*269.80 | 1.1/1.1 | 2.35 |
28 | 21.5” | GG-215010 | 524.00*321.80 | 478.00*269.80 | 478.60*270.10 | 1.1/3 | 4.3 |
29 | 22” | GG-220010 | 550.00*376.00 | 475.70*298.10 | 477.70*300.10 | 1.1/3 | 4.3 |
30 | 23.6” | GG-236010 | 573.00*349.00 | 525.50*297.00 | 527.50*299.00 | 1.1/3 | 4.3 |
31 | 27” | GG-270010 | 658.00*416.00 | 598.00*336.00 | 600.00*338.00 | 1.1/3 | 4.3 |

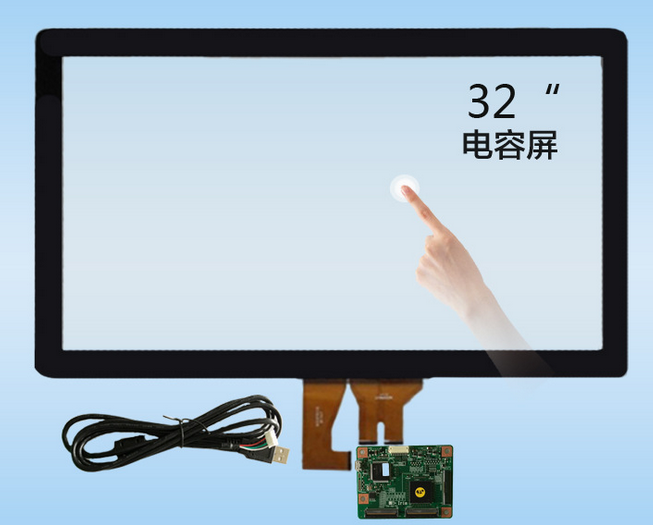

32 | 32” | GFF-320010 | 770.70*465.30 | 698.70*393.30 | 706.00*397.90 | 0.45/3 | 3.65 |
33 | GG-320010 | 770.70*465.30 | 698.70*393.30 | 704.00*396.00 | 1.1/3 | 4.3 |

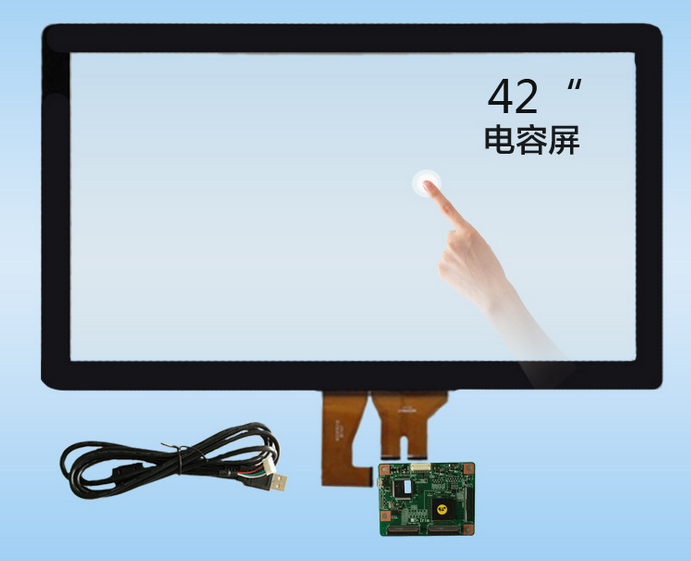

34 | 42” | GFF-420010 | 994.20*587.30 | 934.20*527.30 | 938.20*531.10 | 0.45/4 | 4.65 |
35 | 46” | GFF-460010 | 1090.80*645.40 | 1020.80*575.40 | 1033.20596.40 | 0.45/4 | 4.65 |
36 | 55” | GFF-550010 | 1273.00*744.40 | 1213.60*684.40 | 1205.60*678.40 | 0.45/4 | 4.65 |
Example of engineering drawing
